CAB XENO4 Fiber marking laser
CAB XENO 4 Fiber marking laser represents
- a compact scan head,
- high operation speeds,
- integrated focus finding,
- shifting the marking plane quickly,
- shifting the focus throughout height differences up to 140 mm,
- Industry 4.0,
- TCP/IP control and monitoring
- control unit and the beam source are incorporated in a 19" rack.
XENO4 High beam quality and high pulse peak powers
The performance and quality of markings mainly depend from the output power and the laser beam focus. cab XENO 4 marking lasers are diode-pumped and air-cooled. They have high beam quality and high pulse peak powers. Laser sources are provided with 20, 30 and 50 Watt. Different plano-spherical lenses enable marking in fields from 69 x 69 mm to 290 x 290mm. Marking is possible on plastics, metals and painted surfaces. XENO 4 marking lasers consist of two units: The control unit has the beam source integrated, whereas the scan head is connected with the beam source via a fiber. It can be assembled in any orientation. The integrated focus finder simplifies workpiece positioning. Fully PLC compatible working.

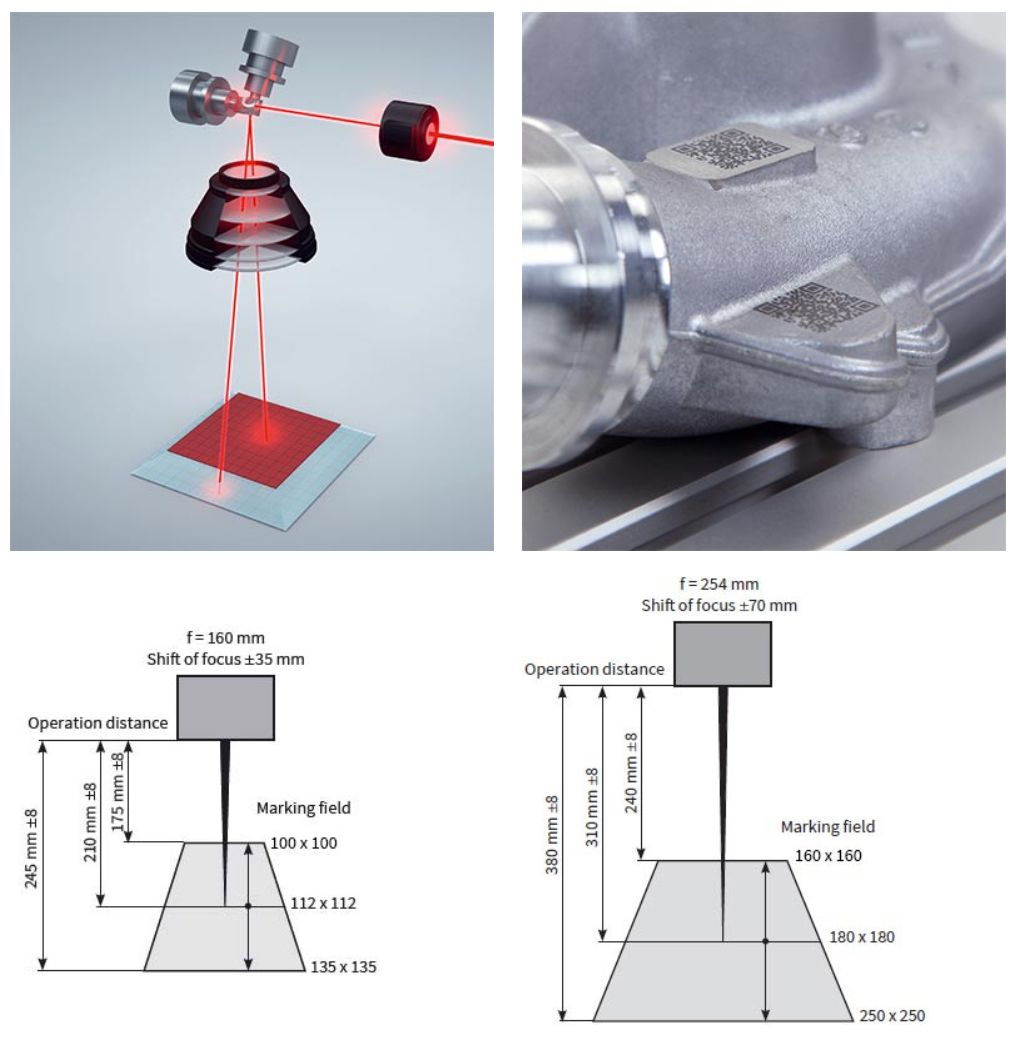

XENO4S Shifting the focus
By shifting the focus, XENO 4S can within fractions of a second effortlessly compensate height differences on a component. By mechanical unit adjustment, even complex markings are possible on different levels of a component without loss of cycle time. A control unit calculates the respective layout scaling. Depending from the plano-spherical lens in use, shifting is possible up to ±70 mm.
