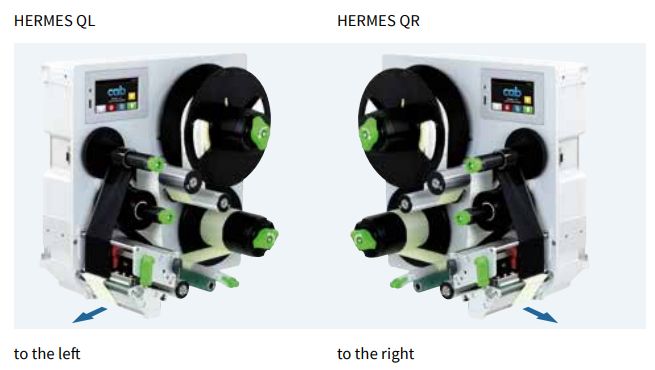

CAB HERMES Q print and apply
The label printer engine can combined with several applicators as the project needed.
Print engine available in 300-600dpi resolution with 2",4" and 6" wide printhead.
Standard configuration contains:
- Multilanguage TouchSchreen
- I/O card for PLC support
- LAN, RS232, USB
- Optional WLAN interface
Check the configurations!
Very robust desin for high productivity and industrial environment.
Full PLC controll supported with the I/O card and RS232 or Ethernet prompts.
Different applicators are availabel for the different projects.

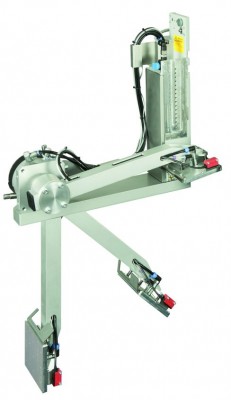

3014/3016 Swing arm applicator: Front, side and back labelling

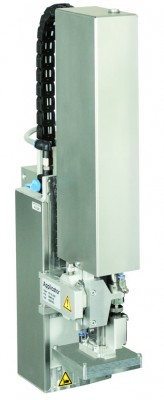

4014 Storke applicator: Simple labelling

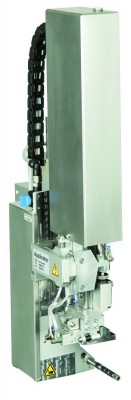

4114 Stroke applicator: High accuracy labelling with small labels (min. 4x4mm)

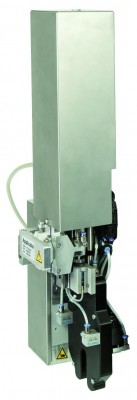

4714 Flag labeller: Cable labelling with high accuracy, for different diameters

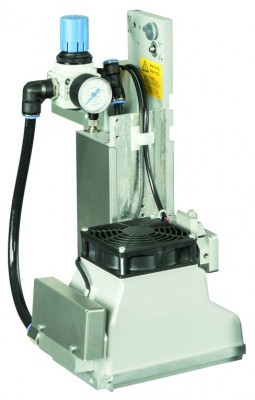

6014 Blow labeller: Fragile or bupmy surface labelling

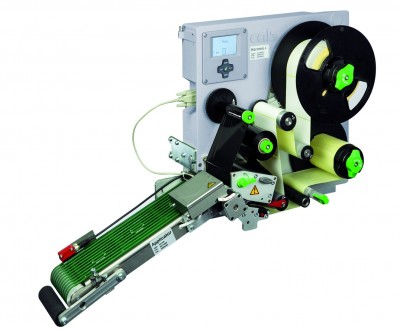

5314 Vacuum belt applicator: Labelling with high speed and in motion

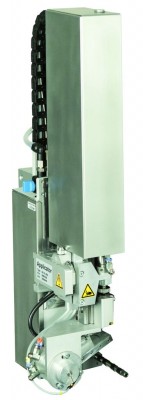

4514 Swing Stroke applicator: Inside labelling
For more solutions please check: https://www.youtube.com/user/cabProdukttechnik/videos
